Predefined

Click DNS management > Domain > Views > Statement > Predefined

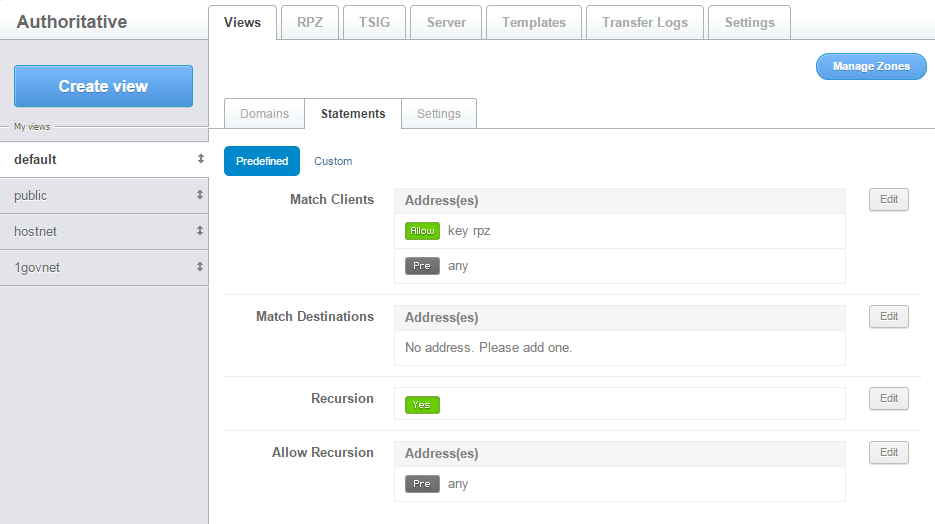

Figure 2.2.1.6.1-a : Statement management interface .

• Match Clients - defines the address_match_list for the source IP address of the incoming messages.

• Match Destination - defines the address_match_list for the destination IP address of the incoming messages.

• Recursion - controls caching behaviour in the server.

  • Set to 'yes' (the default) the server will always provide recursive query behaviour if requested by the client (resolver).
  • Set to 'no' the server will only provide iterative query behaviour - normally resulting in a referral.

• Allow-recursion - defines a address_match_list of IP address(es) which are allowed to issue recursive queries to the server.

To Edit the above statements, follow the following instruction :

• Click Edit at Match Clients .
• Insert ip address or Add Key or Add GeoIP.
• Click Add Address then click Done after finished.

• Click Edit at Match Destinations.
• Insert ip address
• Click Add Address then click Save after finished.

• Click Edit at Recursion.
• Select Yes to allow recursion and No for otherwise.
• Click Update then click Done after finished.

• Click Edit at Allow Recursion.
• Insert ip address.
• Click Add Address then click Done after finished.
